MAGTEK DYNAMAG DESKTOP USB SWIPE CARD READER

* This product may be eligible for additional discount when bundling with other services. Contact us to find out how!

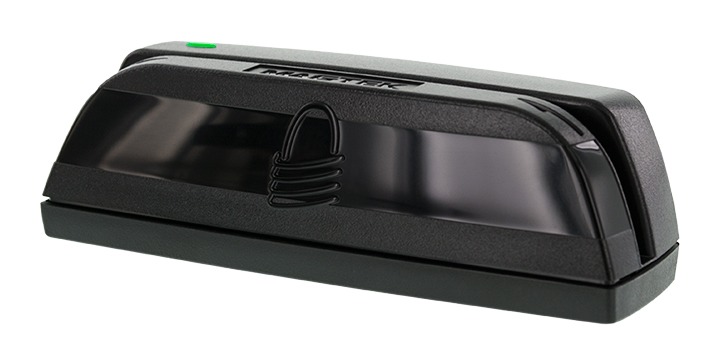

Magtek Dynamag USB Swipe Card Reader

Windows plug & play

Supports USB HID or USB Keyboard emulation interfaces.

Simple connection
Powered and connected via USB.

Reliable and space-saving design
Just under 4 inches, Dynamag saves space on the counter and still provides a long swipe path.

Simple to understand LED

The Red/Green/Amber LED status indicator keeps you in the know.

WANT MORE INFO?

[bs_button size=”lg” type=”primary” value=”Contact Us” href=”https://www.mymonify.com/contact/”]

Description

MAGTEK DYNAMAG USB SWIPE CARD READER

SECURED BY THE MAGNESAFE SECURITY ARCHITECTURE

MagneSafe™ is a digital identification and authentication architecture that safeguards consumers and their personal data. Designed to exceed PCI regulations, MagneSafe leverages strong encryption, secure tokenization, counterfeit detection, tamper recognition, data relevance and integrity, and dynamic digital transaction signatures, which together validate and protect the entire transaction and each of its components.

HIGHEST FIRST SWIPE READ RATE

MagTek readers have one of the highest first swipe read rates in the industry and last for 1 million swipes. This enables you to develop reliable hardware and systems that move lines faster and makes your customers happy.

IDENTITY AND ACCESS MANAGEMENT

Magensa’s authentication platform incorporates a novel, patented approach that provides users with control and privacy over their data and accounts while reducing the security risk for both the enterprise and the user. Leveraging a distributed security approach, the platform is superior as an alternative to username and passwords, authorizing transactions, and privatizing digital assets. Leveraging smart devices and a variety of authentication input options, Magensa’s IAM platform provides ease of use and peace of mind for users and their digital assets. Further, it’s modular design and purpose built browser enable easy integration into applications and reduced development time.

STANDARD CONFIGURATIONS

Description P/N
Black, USB swipe reader 21073062

GENERAL INFORMATION

Interfaces USB HID
USB Keyboard Emulation
Color Black
Reference Standards ISO 7810, ISO 7811, AAMVA
Recording Method Two-frequency coherent phase (F2F)
Card Speed 4 to 60 ips (10.1 to 152.4 cm/s)

ELECTRICAL

Power Input 5V from USB bus
Current
Normal Mode 110 mA maximum
Suspend Mode 500 uA maximum

MECHANICAL

Dimensions Length: 3.94” (100.0mm)
Width: 1.28” (32.5mm)
Height: 1.23” (31.3mm)
Weight Weight: 4.5 oz. (127.57 g)
Cable Length 6 ft.
Connector USB Type A plug

ENVIRONMENTAL

Temperature
Operating -30 °C to 70 °C (-22 °F to 158 °F)
Storage -40 °C to 70 °C (-40 °F to 158 °F)
Humidity
Operating 10% to 90% noncondensing
Storage Storage
10% to 90% noncondensing
Altitude
Operating 0-10,000 ft. (0-3048 m.)
Storage 0-10,000 ft. (0-3048 m.)
